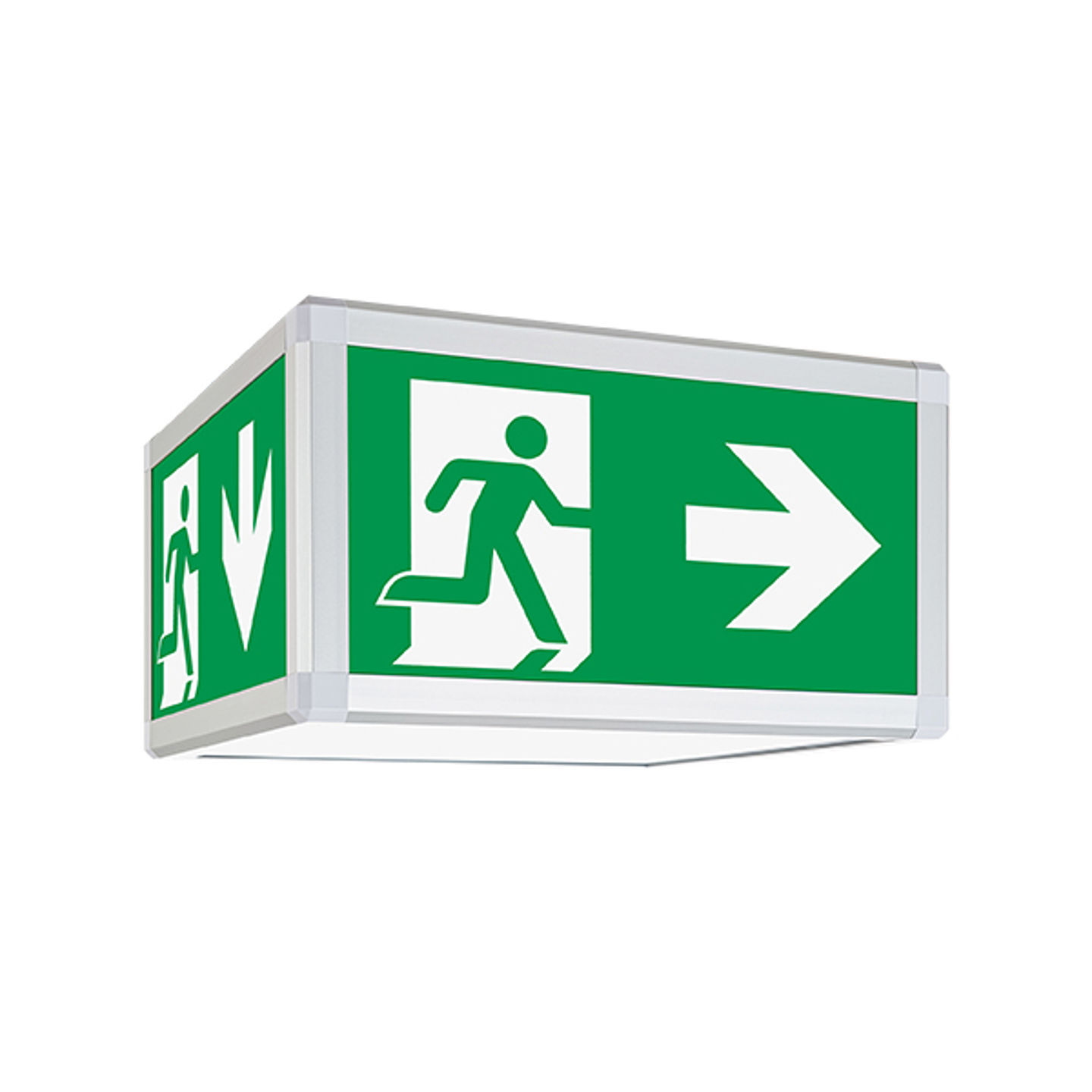

560138 Taurac Rubiks Oslo dec. opbouw plafond autotest 30 m. IP20 incl. picto

Omschrijving

Taurac Rubiks Oslo dec. opbouw plafond autotest 30 m. IP20 incl. picto

Type
Rubiks Oslo

Keurmerken
Specificaties
Merk Taurac Premium

Geschikt voor merk Taurac

Artikelnummer PK5D213112

Soort Kubus plafond

Mounting method Ceiling surface mounting

Function Escape route signage

Suitable for labelling type Insert sheet/plate

Type of indicator Four-sided

With pictogram Ja

Battery technology NiMH

Lamp type LED not exchangeable

With light source Ja

Lamp holder None

Housing material Aluminium

Housing colour White

Material cover Without cover

Voltage type AC/DC

Nominal voltage (V) 230 - 230

Type of control gear LED operating device current-controlled

Light distributor None

Rated lifetime L70/B50 at 25 °C (h) 100000

Degree of protection (IP) IP20

Impact strength IK04

Protection class according to IEC 61140 I

Max. system power (W) 10,80

Luminous flux in standby mode (lm) 170

Power factor 18

Recognition distance (m) 30

Nominal operation time (h) 1 - 1

Width (mm) 300

Height/depth (mm) 154

Length (mm) 300

Type of wiring Suitable for loop-through wiring

Connection type Plug-in connection

Eigenschap decentraal, auto test, standaard

Eenheid Stuk

Minimale bestelhoeveelheid 1

Orderveelvoud 1

Garantie (maanden) 60
