560150 Taurac Spot Denver Dec. inbouw plafond auto test open ruimtes en vluchtweg IP20 3W Ø 75mm

Omschrijving

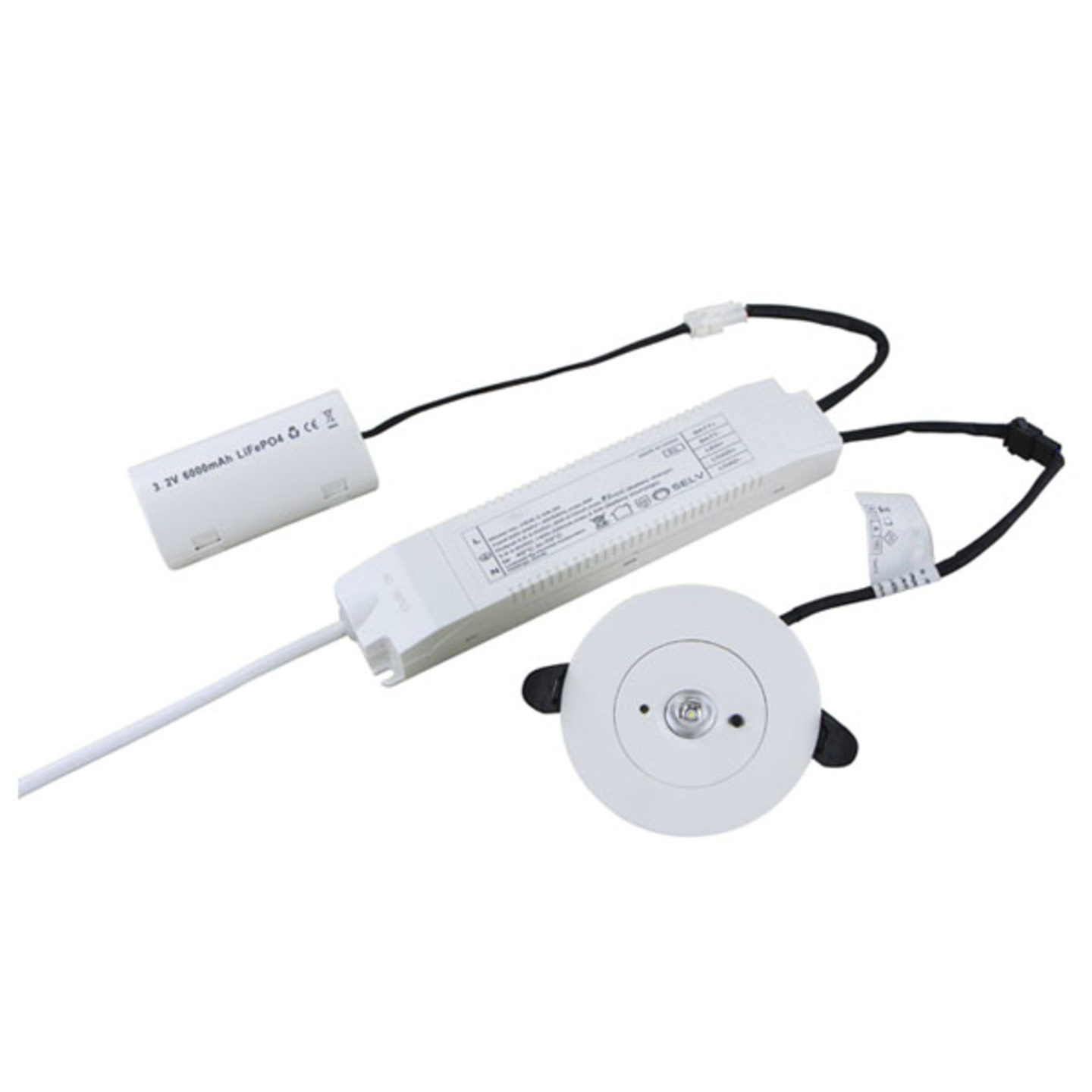

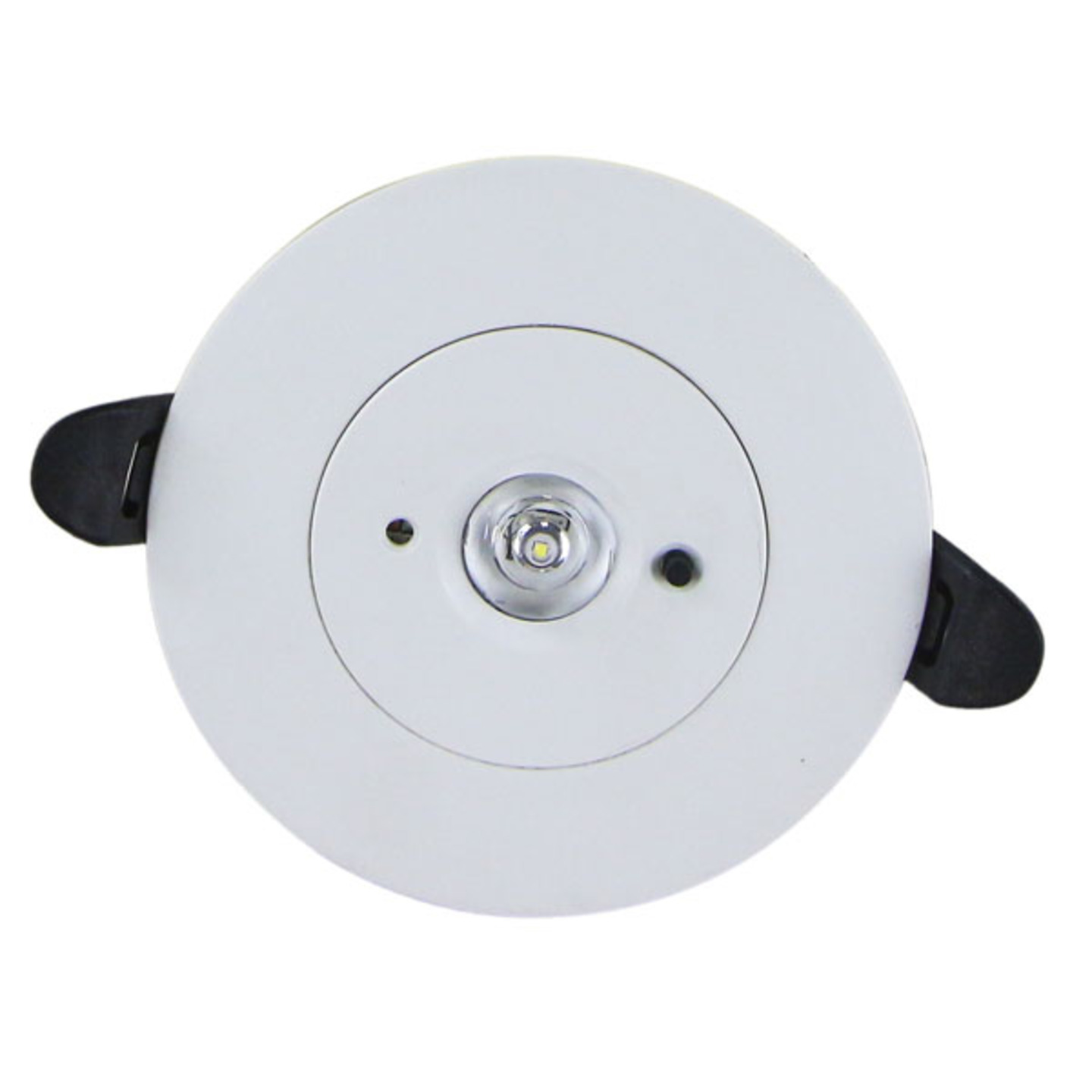

Taurac Spot Denver Dec. inbouw plafond auto test open ruimtes en vluchtweg IP20 3W Ø 75mm

Type
Spot Denver

Keurmerken
Specificaties
Merk Taurac Plus

Artikelnummer I3D14503

Soort Spot

Mounting method Built-in

Function Escape route lighting

Battery technology Lithium-ion

Lamp type LED not exchangeable

Lamp holder None

Housing material Plastic

Housing colour White

Material cover Without cover

Voltage type DC

Nominal voltage (V) 220 - 240

Type of control gear LED operating device current-controlled

Light distributor Focal lens

Energy efficiency class of the light source according to EU regulation 2019/2015 Not required

Degree of protection (IP) IP20

Impact strength IK02

Protection class according to IEC 61140 II

Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 45

Max. system power (W) 3

Luminous flux in standby mode (lm) 400

Colour temperature (K) 6000 - 6000

Power factor 0,60

Height/depth (mm) 53,40

Outer diameter (mm) 85

Built-in height/depth (mm) 50,50

Built-in diameter (mm) 76

Type of wiring Ending

Number of poles 3

Conductor cross section (mm²) 0,50

Connection type Plug-in connection

Oplaadbaar Ja

Eenheid Stuk

Minimale bestelhoeveelheid 1

Orderveelvoud 1

Garantie (maanden) 36
