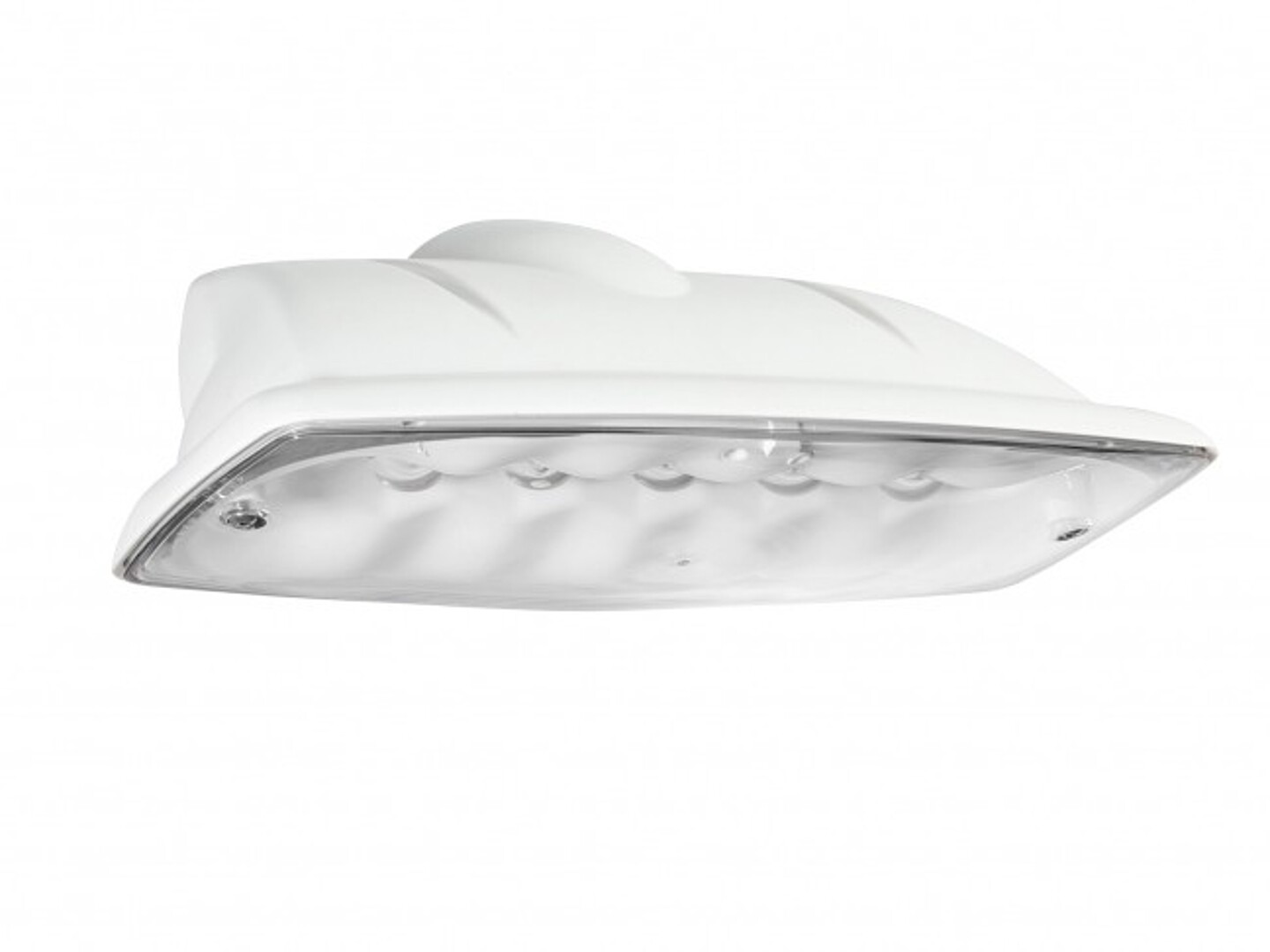

HBI 200 Polarem 5W LED Wall Corridor Radar (WCR)

Artikelnummer 2L0500WCR
  • Omschrijving

    Innovatieve armatuur met speciale lenstechniek waardoor het licht efficiënt te sturen is. Hierdoor is er weinig lichthinder. Ook heeft het instelmogelijkheden van lichtniveaus en sensoren. De elektronica heeft een lange levensduur van wel 100.000 branduren en LED L80/B10. De varianten met noodverlichting uit deze lijn zijn voorzien van een extreem duurzame accu met een levensduur van wel 10 jaar (bij draadloos beheer)! De lichtstroom is instelbaar op 100, 80, 60, 40 en 20% met een maximum van 425 lm. Bij autonomie van 1 uur is de nood lichtstroom 270lm en bij 3 uur 85lm.

    Type
    Serie 200 Polarem

  • Specificaties

    • Merk HBI
    • Artikelnummer 2L0500WCR
    • Soort Efficiënt & Innovatief
    • Suitable for wall mounting Ja
    • Suitable for surface mounting Ja
    • Lamp type LED exchangeable
    • With light source Ja
    • Suitable for number of light sources 1
    • Lamp holder Other
    • Housing material Plastic
    • Surface protection housing Untreated
    • Housing colour Grey
    • Material cover Plastic, transparent
    • Voltage type AC/DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • With control gear Ja
    • Dimming DSI Ja
    • Dimming manufacturer's proprietary system Ja
    • Dimming programmable Ja
    • Light distributor Diffuser lens/optic/panel
    • Light distribution Symmetric
    • Beam angle 41-80° - Wide beam
    • Colour consistency (McAdam ellipse) SDCM3
    • Light outlet Direct
    • Impact strength IK10
    • Protection class according to IEC 61140 II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) -20 - 40
    • Suitable for emergency lighting Ja
    • With movement sensor Ja
    • With light sensor Ja
    • Filament test according to IEC 60695-2-11 850 °C - 30 s
    • Max. system power (W) 7
    • Colour of light White
    • Colour temperature (K) 4000 - 4000
    • Colour rendering index CRI 80-89
    • Power factor 0,90
    • Width (mm) 265
    • Height/depth (mm) 99
    • Length (mm) 148
    • Type of wiring Ending
    • Number of poles 2
    • Connection type Screwed terminal
    • Colour of light adjustable No
    • Luminous flux adjustable Positions
    • Beam angle adjustable No
    • Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C) Ja
    • Oplaadbaar Nee
    • Eenheid Stuk
    • Minimale bestelhoeveelheid 1
    • Orderveelvoud 1
    • Garantie (maanden) 60
