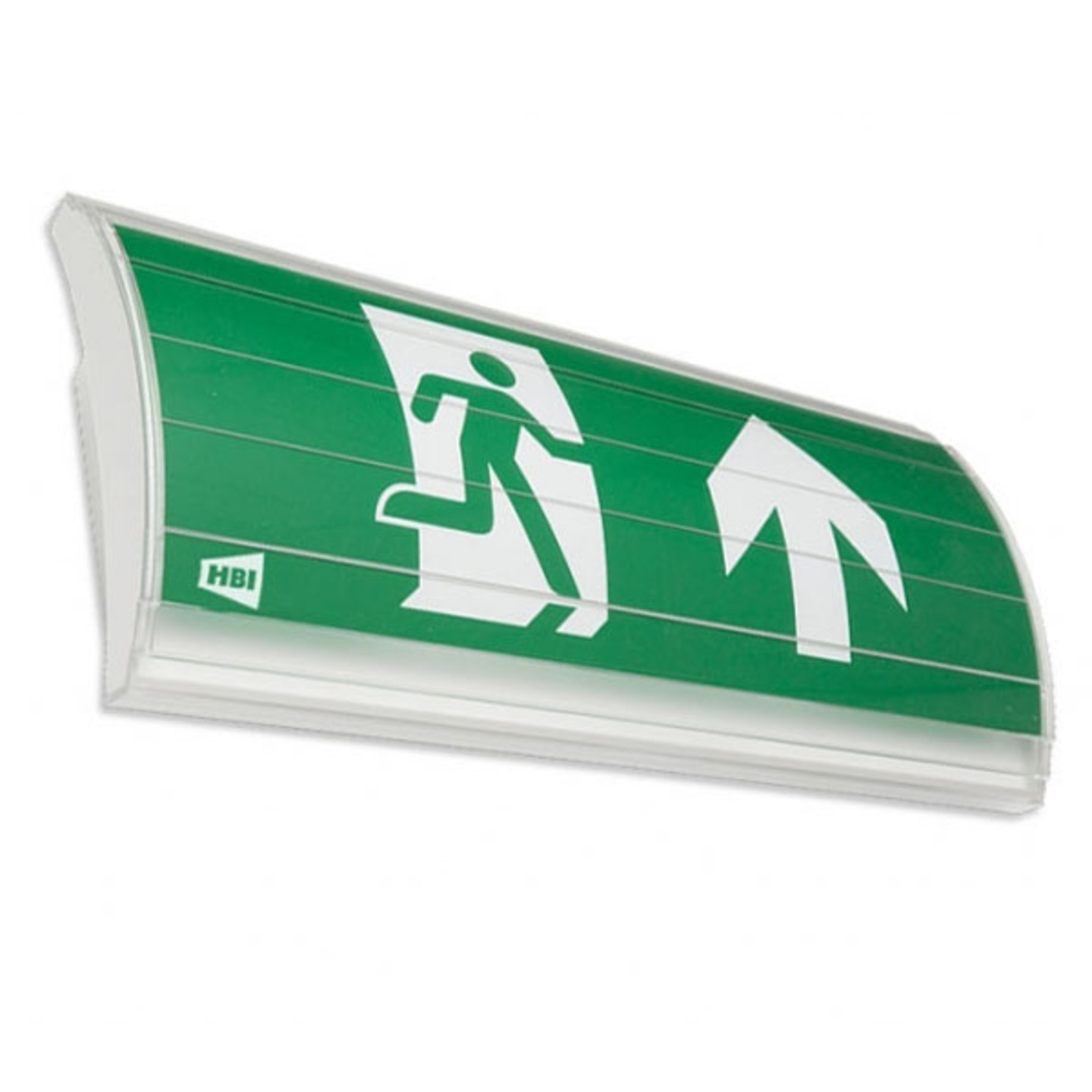

HBI 300 Eagle Ledology 6W C maintained AutoTest

Artikelnummer 3L0606C
  • Omschrijving

    Elegante en duurzame armatuur. Installatievriendelijk door een kap, reflector en pictogram met klemconstructie. Is multifunctioneel inzetbaar. Ook heeft het instelmogelijkheden van lichtniveaus en sensoren. De elektronica heeft een lange levensduur van wel 100.000 branduren en LED L80/B10. De varianten met noodverlichting uit deze lijn zijn voorzien van een extreem duurzame accu met een levensduur van wel 10 jaar! De lichtstroom is instelbaar op 100, 80, 60, 40 en 20% met een maximum van 400 lm. Bij autonomie van 1 uur is de nood lichtstroom 300lm en bij 3 uur 100lm.

    Type
    Serie 300 Eagle

  • Specificaties

    • Merk HBI
    • Artikelnummer 3L0606C
    • Soort Elegant & Duurzaam
    • Mounting method Wall surface mounting/ceiling surface mounting
    • Function Escape route lighting/signage
    • Suitable for labelling type Insert sheet/plate
    • Type of indicator Single/double-sided
    • Suitable for standby switching Ja
    • Suitable for continuous circuit Ja
    • With remote switch connection Ja
    • Battery technology NiMH
    • Lamp type LED exchangeable
    • With light source Ja
    • Suitable for number of light sources 1
    • Lamp holder Other
    • Number of lighting heads 1
    • Housing material Plastic
    • Housing colour Grey
    • Material cover Plastic, transparent
    • Voltage type AC/DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Constant light output (CLO) Ja
    • Degree of protection (IP) IP42
    • Impact strength IK08
    • Protection class according to IEC 61140 II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) -20 - 40
    • Max. system power (W) 5,70
    • Luminous flux in standby mode (lm) 462
    • Colour temperature (K) 4000 - 4000
    • Power factor 0,90
    • Recognition distance (m) 26
    • Nominal operation time (h) 1 - 3
    • Width (mm) 368
    • Height/depth (mm) 80
    • Length (mm) 170
    • Built-in width (mm) 126
    • Built-in height/depth (mm) 2,90
    • Built-in length (mm) 334
    • Type of wiring Suitable for loop-through wiring
    • Number of poles 3
    • Conductor cross section (mm²) 2,50
    • Connection type Plug-in connection
    • Oplaadbaar Nee
    • Eenheid Stuk
    • Minimale bestelhoeveelheid 1
    • Orderveelvoud 1
    • Garantie (maanden) 60
  • Bijbehorende artikelen

    • 304Q HBI Serie 300 click-in pictogram pijl omhoog ISO7010
    • 304X HBI Serie 300 click-in pictogram pijl omlaag ISO7010
    • 304Y HBI Serie 300 click-in pictogram pijl rechts ISO7010
